Tiger Interface

The Tiger software packages use an intuitive interface with many scrap-reducing features. Three versions of the Tiger software are available: Tiger Cub, Tiger Standard and Super Tiger.

Tiger Software Packages
Feature Description Tiger Cub Tiger Standard Super Tiger

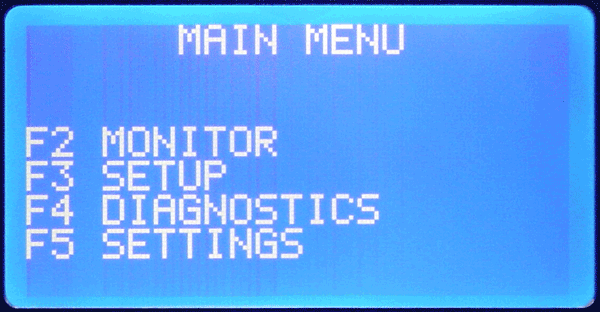

Main Menu Click for Image Preview
Monitor Click for Image Preview
Last Reading*
Last 5 Readings*
Last 5 Mean*
Last 50 Readings*
Last 50 Mean*
Good Count* (this feature is located in Production Manager for the Super Tiger software package)
*Tiger Cub & Tiger software packages utilize bar graph displays; Super Tiger utilizes unique graphical displays
Job Summary Click for Image Preview (Last, Mean, CpK)
Strip Charts Click for Image Preview
Strip Charts > Length Specs Click for Image Preview (strip chart display can be extended to show last 50)
Strip Charts > Sort Counts
Strip Charts > Histogram Click for Image Preview
Strip Charts > Length Adjustment Info
Production Monitor Click for Image Preview
Production Monitor > Sort Summary Click for Image Preview (Good, Bad Short, Bad Long)
Production Monitor > Test Times & Rates Click for Image Preview (Instant Rate, Average Rate, Cycle Time, Since Last)
Reset Counts
SPC Click for Image Preview
SPC > Data (Good, Bad, Mean, Sigma, CpK, Subgroup Size, Sample Frequency)
SPC > X Bar Chart Click for Image Preview
SPC > R Chart Click for Image Preview
SPC > Sample Histogram Click for Image Preview Click for Image Preview
SPC > Total Histogram Click for Image Preview Click for Image Preview
MCS Click for Image Preview Click for Image Preview (Start, Good, Bad, Mean, Sigma, CpK, X UCL, X LCL, R Mean, R UCL)
Setup Click for Image Preview
Job Setup Click for Image Preview
Job Setup > Length Click for Image Preview (Nominal & Tolerance)
Job Setup > Customer Name Click for Image Preview
Job Setup > Part # Click for Image Preview
Job Setup > Lot # Click for Image Preview
Job Setup > Comments Click for Image Preview
Probe Setup (Standard) Click for Image Preview
Probe Setup (Ultracal) Click for Image Preview
Length Adjust Setup > None Click for Image Preview
Length Adjust Setup > Each Click for Image Preview
Length Adjust Setup > Averaging Click for Image Preview
Length Adjust Setup > Centering Click for Image Preview
Sorting Setup > 2 Way Good Click for Image Preview
Sorting Setup > 2 Way Bad Click for Image Preview
Sorting Setup > 3 Way Click for Image Preview
Sorting Setup > 5 Way with Fixed 33% Tolerance
Sorting Setup > 5 Way with User Defined Tolerance Click for Image Preview
Sorting Setup > None Click for Image Preview
Coiler Shutdown Setup Click for Image Preview
Coiler Shutdown Setup > Consecutive Bad (Tiger Cub & Tiger software packages show last 9; Super Tiger shows user defined value)
Coiler Shutdown Setup > No Cutoff
Coiler Shutdown Setup > Total Good
Coiler Shutdown Setup > CpK Limit
Coiler Shutdown Setup > Excess Adjust
SPC Setup Click for Image Preview (Subgroup Size, Sample Frequency, Collect On All / Good Only, Limits Entered / Calculated)
Diagnostics Click for Image Preview
Probe Tests Click for Image Preview (Probe Setup, Functional Test, Drift Test, Voltage, Length)
Length Adjust Test Click for Image Preview (Adjust Shorter, Adjust Longer)
Sorting Chute Test Click for Image Preview (Bad Short, 5 Way Short, Good, 5 Way Long, Bad Long)
Keypad Tests Click for Image Preview
Audible Beep
Settings Click for Image Preview
Company Name Click for Image Preview
Software Version
